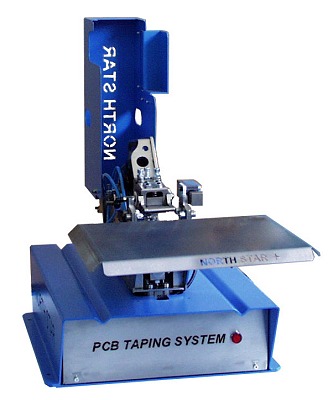

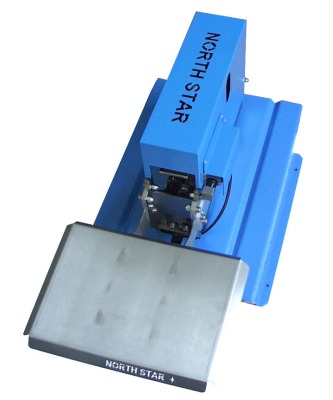

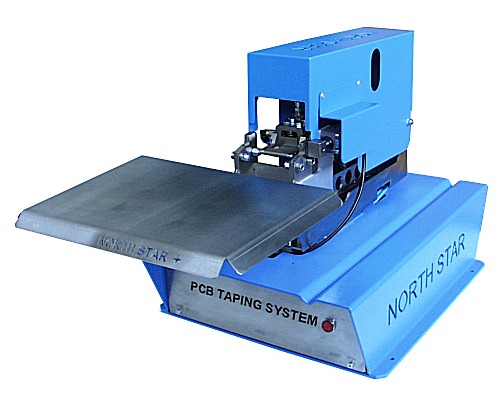

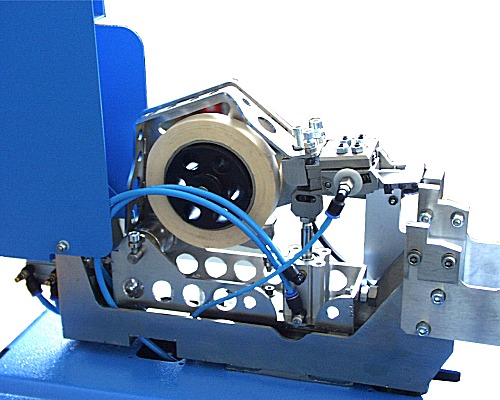

SPEEDY
Semi-automatic taping system composed of single taping heads each of them composed of:
- Taping head mounted on indexing wrists, bearings motion.
- Long life cutting blades.
- Paper roll drum with brake system.
- Stack pressure system pneumatically operated with pressure regulator (2 - 4 bars).
- Dedicated hardware: the taping systems do not have end stroke switches to regulate or adjust, fast cycle time ( 2 seconds )
- Vacuum system for tape support during taping operation and automatic tape cut at 5 mm length. Test mode or second working length at 10 mm.
- Metal case with cover and electric safety switch. Stainless-steel work top brackets.
Technical data
- Taping distance: unlimited.
- Taping thickness without adjustments from 3 to 11 mm.
- Cycle time 2 seconds.
- Over-all dimensions 340 x 940 x 390 mm (height).
- Weight 20 Kg.
Compliance
Compliance with the Electromagnetic Compatibility Directive 89/336/ECC, in the Low Voltage Directive 93/68/ECC and following amendements.
See Document

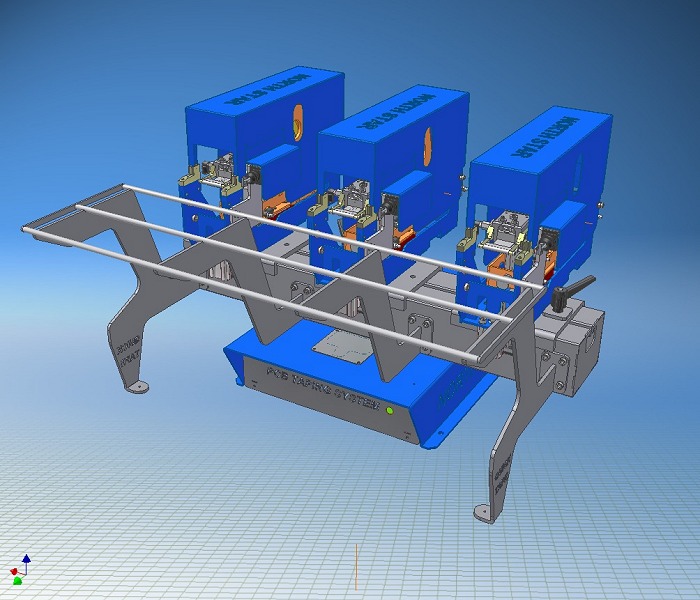

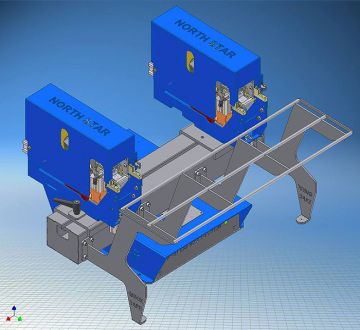

QUICK TAPE
Semi-automatic taping system composed of two taping heads each of them composed of:
- Taping heads mounted on indexing wrists, bearings motion.
- Long life cutting blades.
- Paper roll drum with brake system.
- Stack pressure system pneumatically operated with pressure regulator (2 - 4 bars).
- Dedicated hardware the taping systems do not have end stroke switches to regulate or adjust, fast cycle time (2 seconds )
- Vacuum system for tape support during taping operation and automatic tape cut at 5mm length.
- The two taping heads are manually positioned on stainless steel carriages.
- Metal case with cover and electric safety switch. Stainless-steel work brackets.
Technical data
- Taping distance : min. 180 max. 440 mm.
- Taping platform 100 mm wide and 20 mm high in order to allow side taping of already pinned narrow stacks i.e. 220 x 650 mm.
- Taping thickness without adjustments from 3 to 11 mm.
- Cycle time 2 seconds.
- Over-all dimensions mm 680x980x340 (height).
- Weight 35 Kg.
Compliance
Compliance with the Electromagnetic Compatibility Directive 89/336/ECC, in the Low Voltage Directive 93/68/ECC and following amendements.

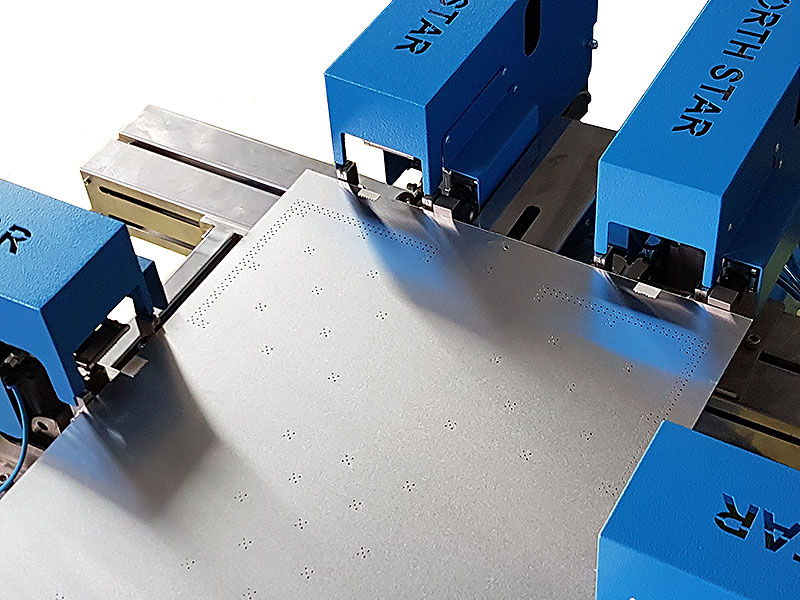

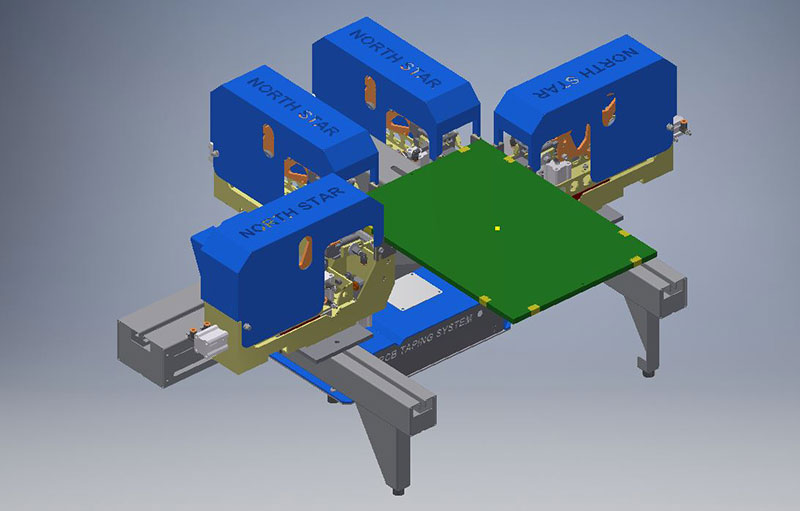

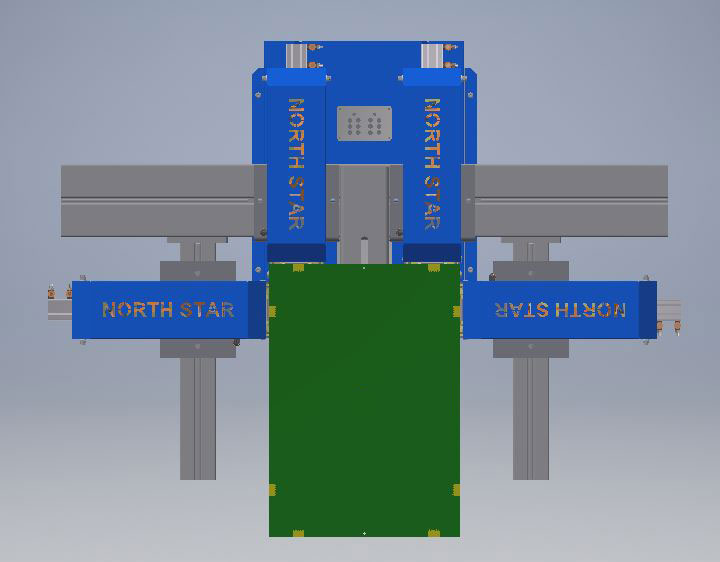

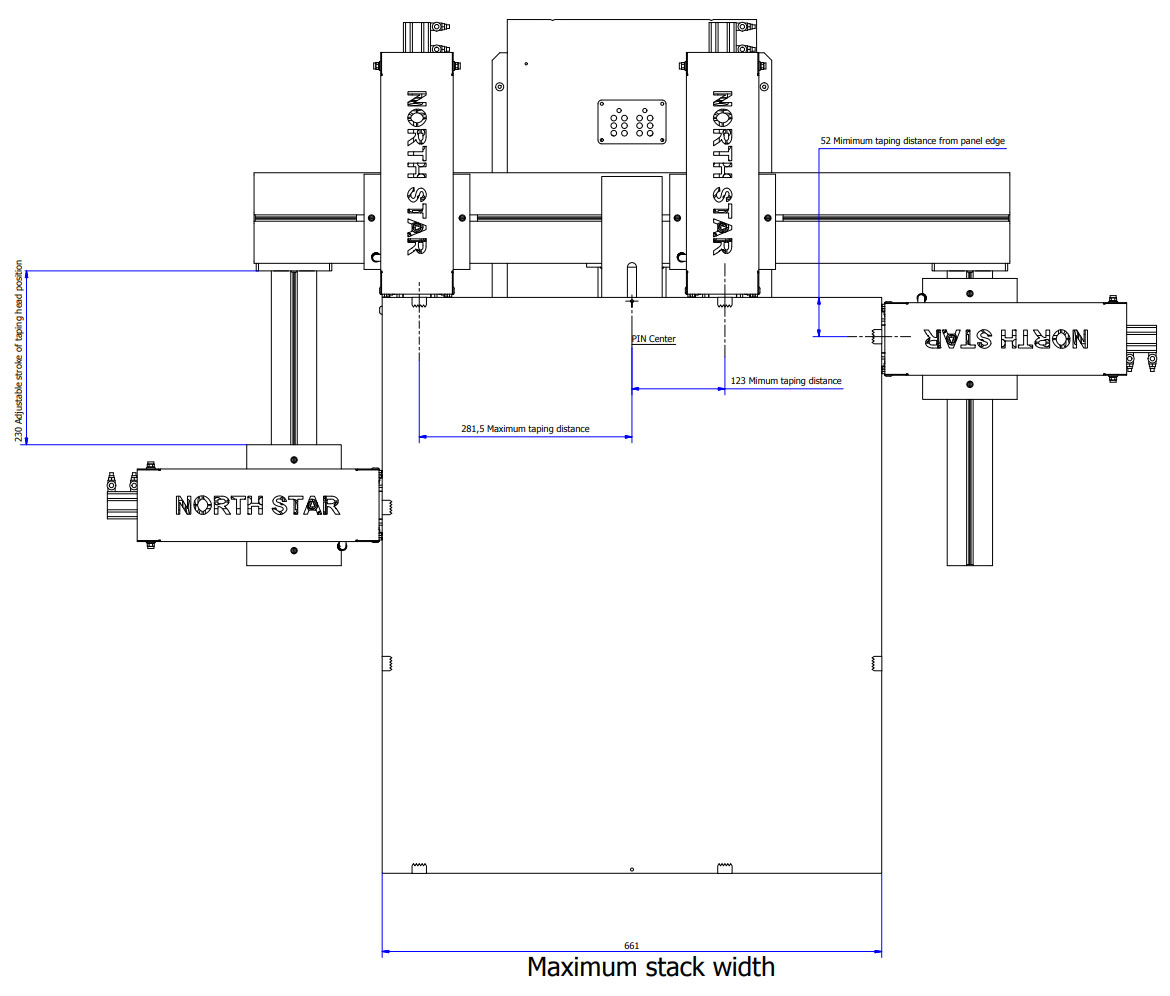

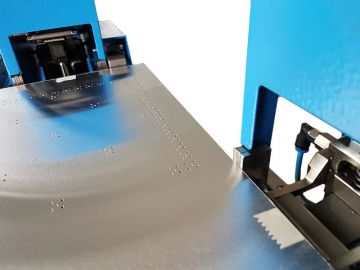

Quick Four
Dedicated to small volume production this system delivers an high performance taping for all types of pcb stacks.
lThe ay-out of this system allows simultaneuos:
- Taping short side ( two tape strips )
- Taping long side ( two tape strips )
- Total direct time 2 seconds
The system requires a second operation to complete a stack.
