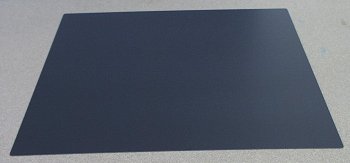

Thanks to our controlled manufacturing process and our broad experience we can supply press plates with very tight tolerances, low roughness, controlled anodized layer and no surface defects.
Alloy
Specifically selected high quality 6XXX aluminum alloy
Heat treatment
Precipitation hardening heat treatment T6 for enhanced strength, hardness and durability
Rolling
Controlled cold rolling to achieve strict dimensional requirements and defect free surface
Shaping
High quality machine cutting, de-burring and rounding of the aluminium sheets to produce custom press plate dimensions, 5 mm radius on each corner
Surface treatment
High thickness sulphuric hard anodizing on the whole press plate surface for high scratch resistance, improved durability and complete electric insulation
Quality inspection
Careful 100% quality inspection to ensure defect-free press plates

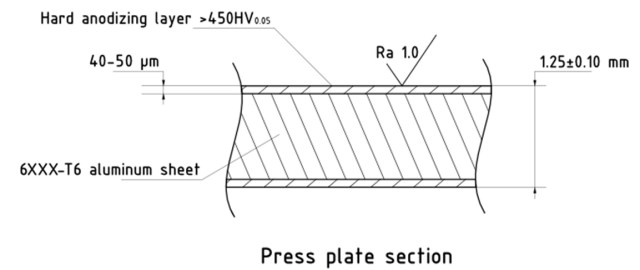

Technical specification
| Base Material | Cold rolled 6XXX-T6 aluminium sheets |
| Base material hardness | > 90 HBS 10/500 |
| Base material yield strength | > 270 MPa |
| Surface treatment | Sulphuric hard anodizing according to MIL-A-8625 Type III |
| Surface treatment thickness | 40-50 μm |
| Surface hardness | > 450 HV0.05 |
| Roughness | < 1.00 Ra |
| Plate thickness | 1.25±0.10mm |
| Side parallelism | < 0.05mm |
| Rounded corners | 5mm radius |
| Electric insulation | Complete electric insulation is ensured since the whole surface is anodized including borders |
Delivery
Our press plates are shipped worldwide, suitably packaged to ensure integrity right up to your delivery location
Request a quotation
To obtain a quotation for the supply of the press plates you need, contact us.
sales@multilink-sagl.com
Please provide us the following information:
- Press plate size
- Press plate quantity
- Delivery location
- Any special request
